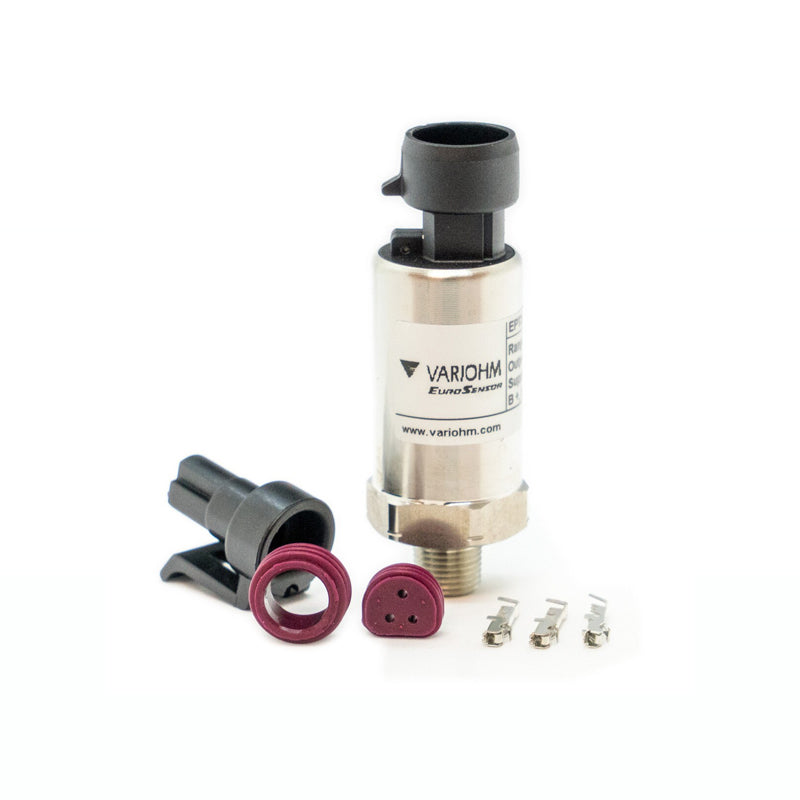

8 Bar MAP Variohm Eurosensor
The 8 Bar MAP Variohm Eurosensor is an advanced sensor capable of measuring up to 7 Bar absolute pressure , making it ideal for turbocharged or supercharged applications operating at boost pressures of up to 7 Bar (approximately 101 PSI) . This sensor provides reliable and accurate measurements for engines generating very high boost pressures.
Features of the 8 Bar MAP Variohm Eurosensor:
- Measuring range of 7 Bar absolute pressure , suitable for engines with a boost pressure up to 7 Bar (101 PSI).
- Included plug and pins for easy installation.
- Easy installation : insert the wire through the connector, secure the terminal with a crimp, and pull the wire/terminal back into the connector.
- For use with Link G4 , G4+ and G4X ECUs , select the MAP sensor type in PC Link as 'Variohm 8 Bar'.
- Calibration : 0 kPa = 0.5V, 800 kPa = 4.5V
- PIN A = 0V
- PIN B = 5V
- PIN C = Signal
This Variohm 8 Bar MAP sensor is an excellent choice for Link ECU users looking for a robust and accurate sensor for measuring intake pressure in engines requiring high boost pressures. The sensor is easy to install and configure via the PC Link software , making it an ideal choice for engine optimization and performance tuning in turbocharged or supercharged applications .
