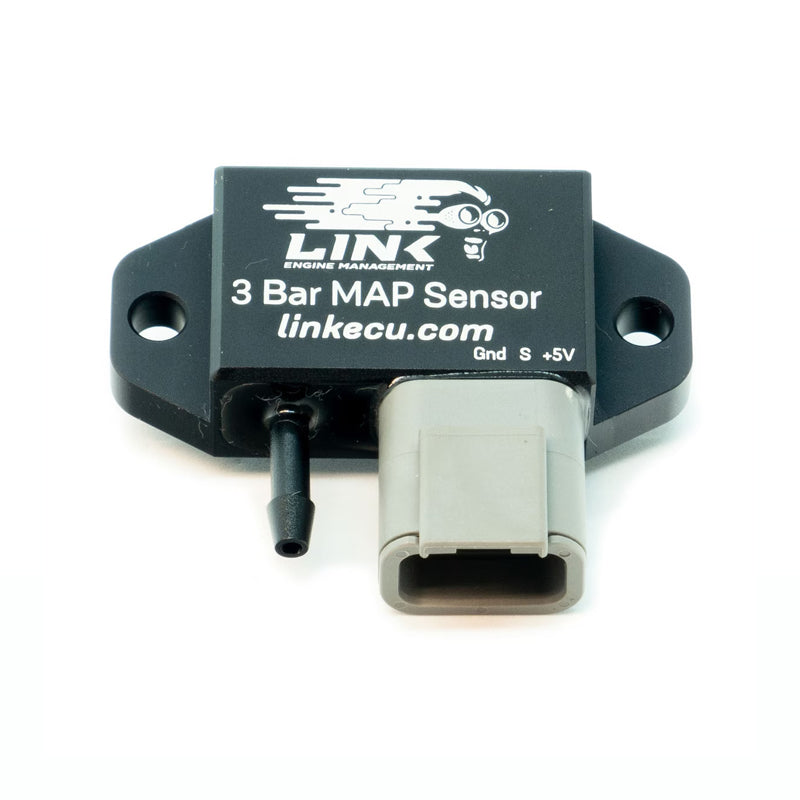

Link 3 Bar MAP Sensor
The Link 3 Bar MAP sensor is an advanced sensor capable of measuring up to 3 Bar of absolute pressure . This makes it perfect for turbocharged or supercharged applications operating with boost pressures up to 2.0 Bar (approximately 29 PSI) . The sensor offers high precision for vehicles operating with significant boost pressures, ideal for applications requiring maximum performance and accuracy.
Features of the Link 3 Bar MAP Sensor:
- Measuring range of 3 Bar absolute pressure, suitable for engines with high boost pressure, such as turbo or supercharged systems.

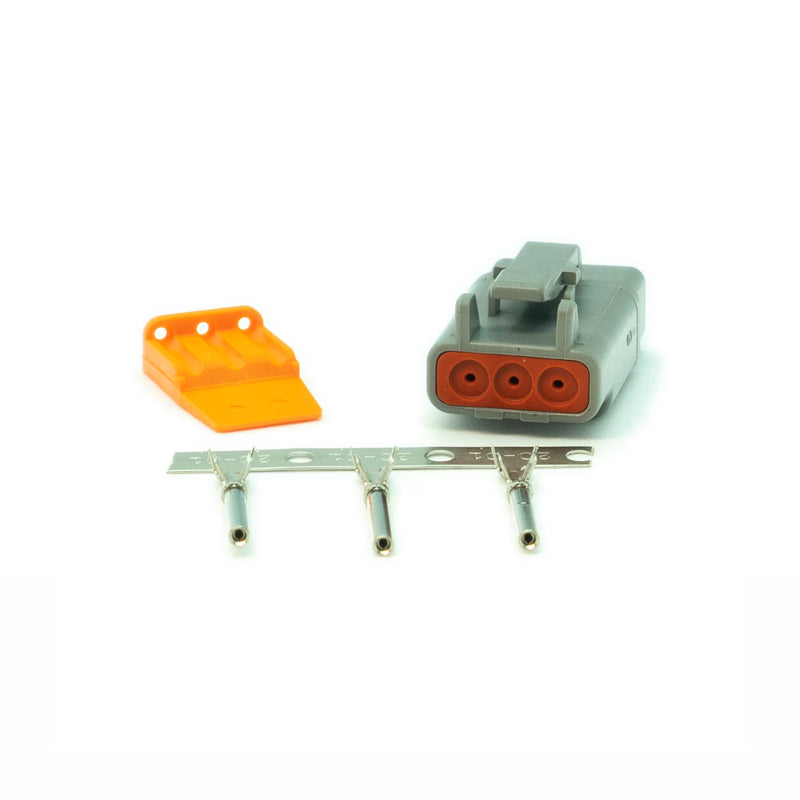

- Deutsch 3-pin connector kit included for easy connection.
- Easy installation via two mounting holes. Note that the sensor must be mounted higher than the inlet port to which the hose is attached.
- Compact aluminum housing that ensures durability and a long lifespan.
- Mechanical connection via a 4mm hose connector.
- For use with Link G4 , G4+ and G4X ECUs, select the MAP sensor type in PC Link as 'Link 3 Bar'.
The Link 3 Bar MAP sensor provides reliable and accurate intake pressure measurements for engines with higher boost pressures. Its rugged and compact housing makes it robust and resistant to harsh conditions, making it ideal for high-performance vehicles with turbochargers or superchargers. Easy to install and configure, the sensor provides the precision required for advanced engine management and tuning.
